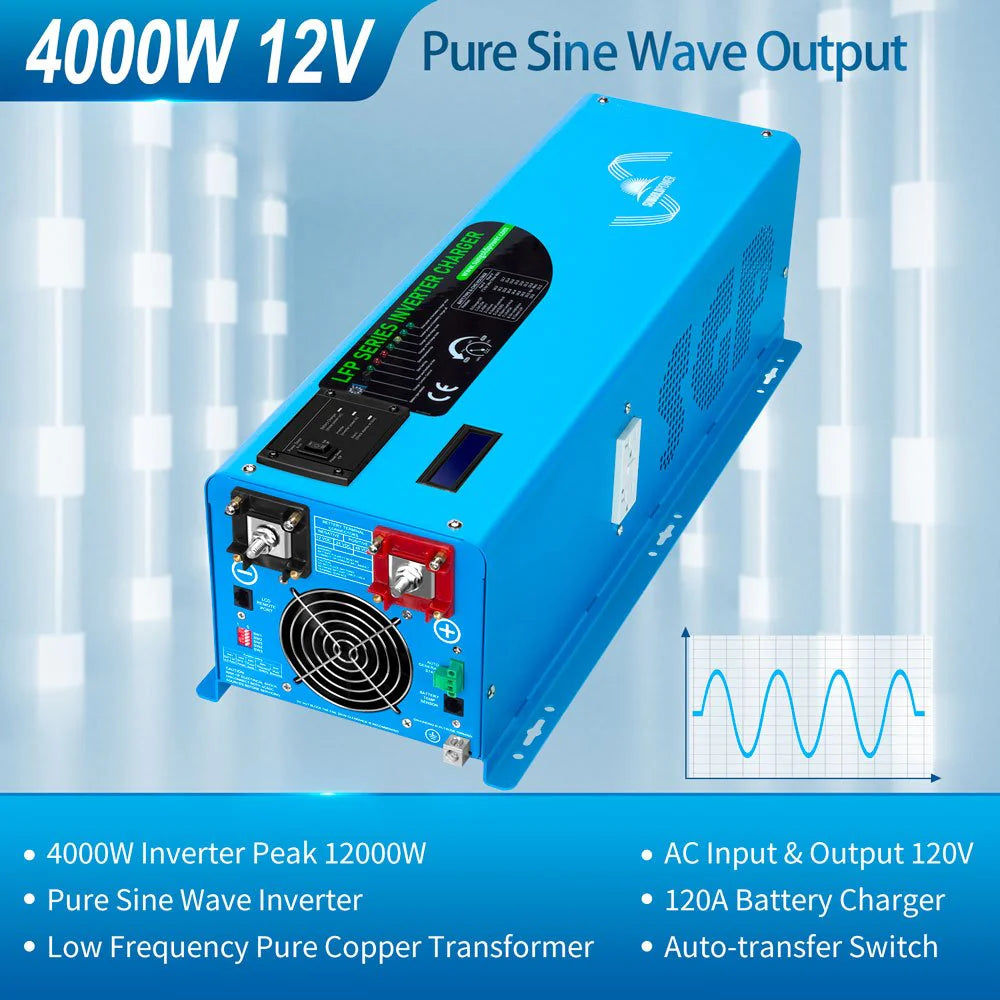

The SunGoldPower 12V Pure Sine Wave Inverter is an integrated system that combines an inverter, battery charger, and AC auto-transfer switch into one reliable unit. It operates with low frequency and minimal idle current, and includes a BTS cable and remote control for added convenience.
This 4000-watt inverter charger requires a 120VAC input and provides 120VAC output, making it suitable for a wide range of appliances. It is capable of outputting 50 or 60Hz via the SW4 switch.

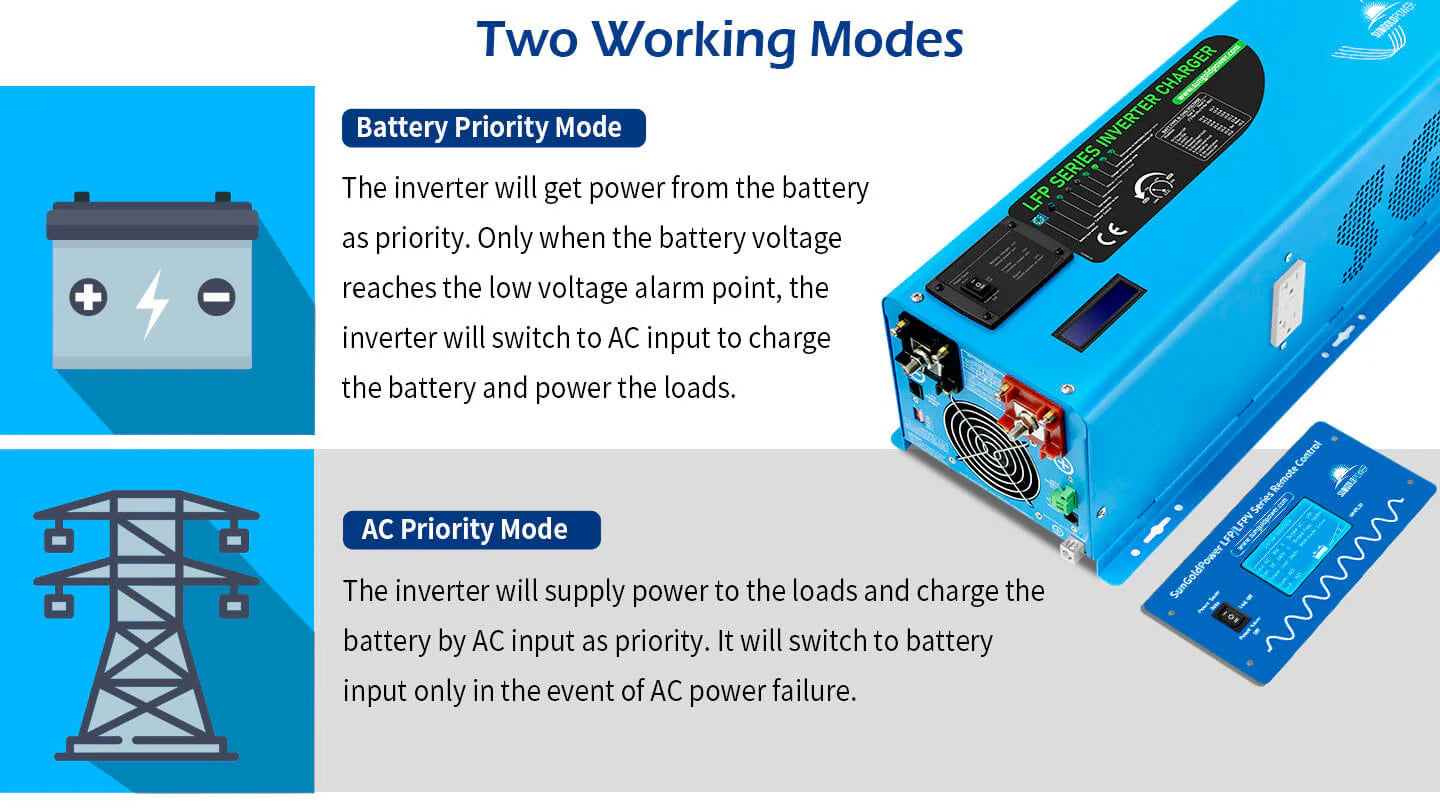

AC/Battery Priority:
- By default, the inverter prioritizes AC power, but you can switch to battery priority using the SW5 switch for flexibility.
Adjustable Charging Current:
- The charging current can be adjusted from 0% to 100% using a linear switch to match your specific power requirements.
Auto Generator Start:
- The inverter can automatically start a generator when the battery voltage drops too low, and shut it off once the battery has finished charging.

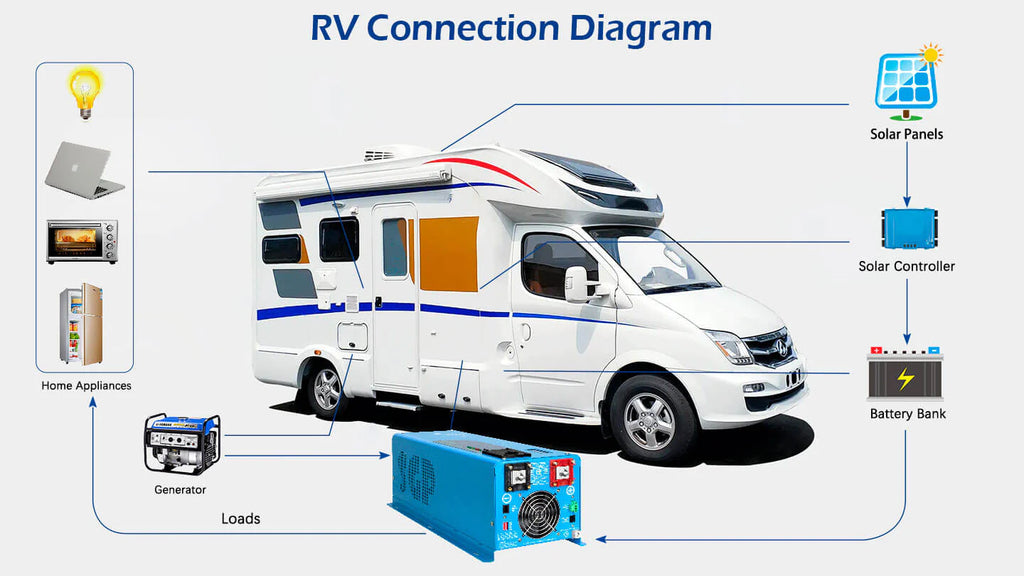

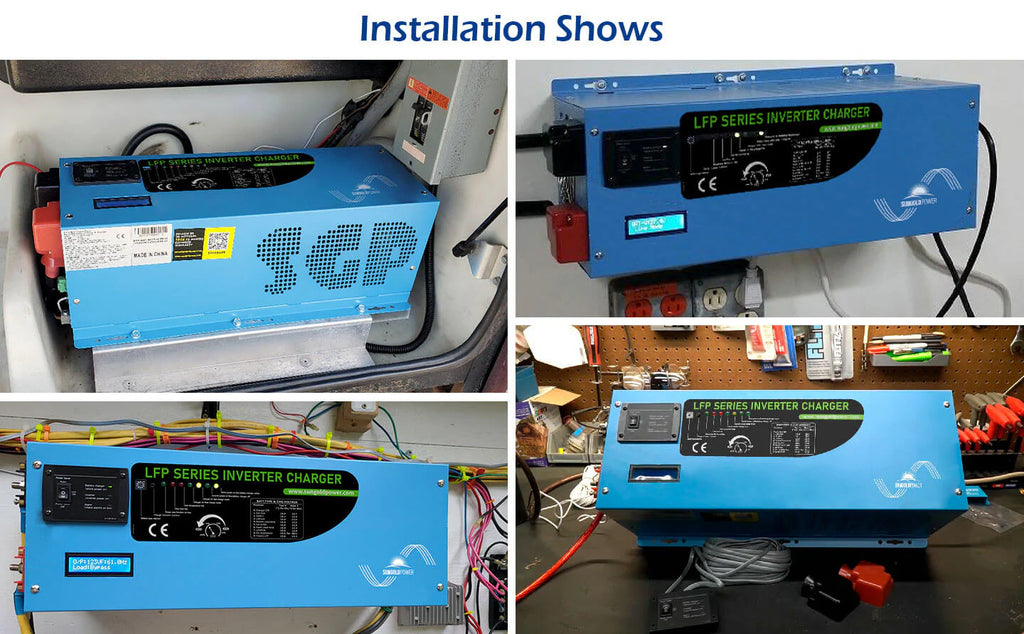

If you're looking for a high-quality pure sine wave inverter with a powerful charger, the SunGoldPower low frequency inverter is the ideal choice. Combining an inverter, battery charger, and transfer switch into one system, this 12V DC to 120V AC inverter offers a 300% surge capacity for 20 seconds, providing reliable power for tools and equipment. It’s perfect for use in RVs, trailers, motorhomes, truck campers, and is also an excellent solution for off-grid or backup power systems.
This inverter requires a 120VAC input and can output 120VAC power, with the ability to adjust the frequency to 50 or 60Hz via the SW4 switch.

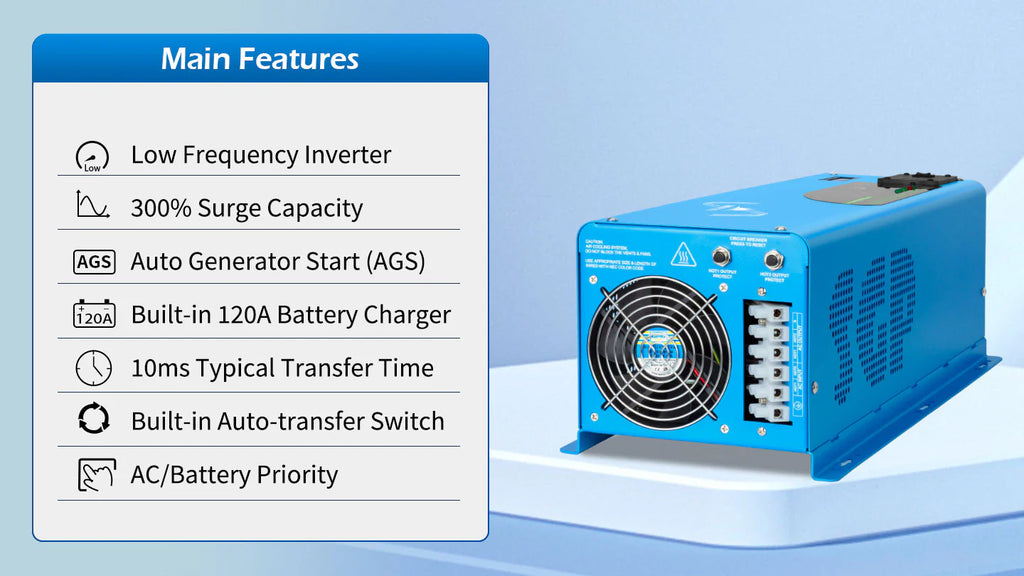

Key Features:
-
4000W low-frequency pure sine inverter with built-in charger
-

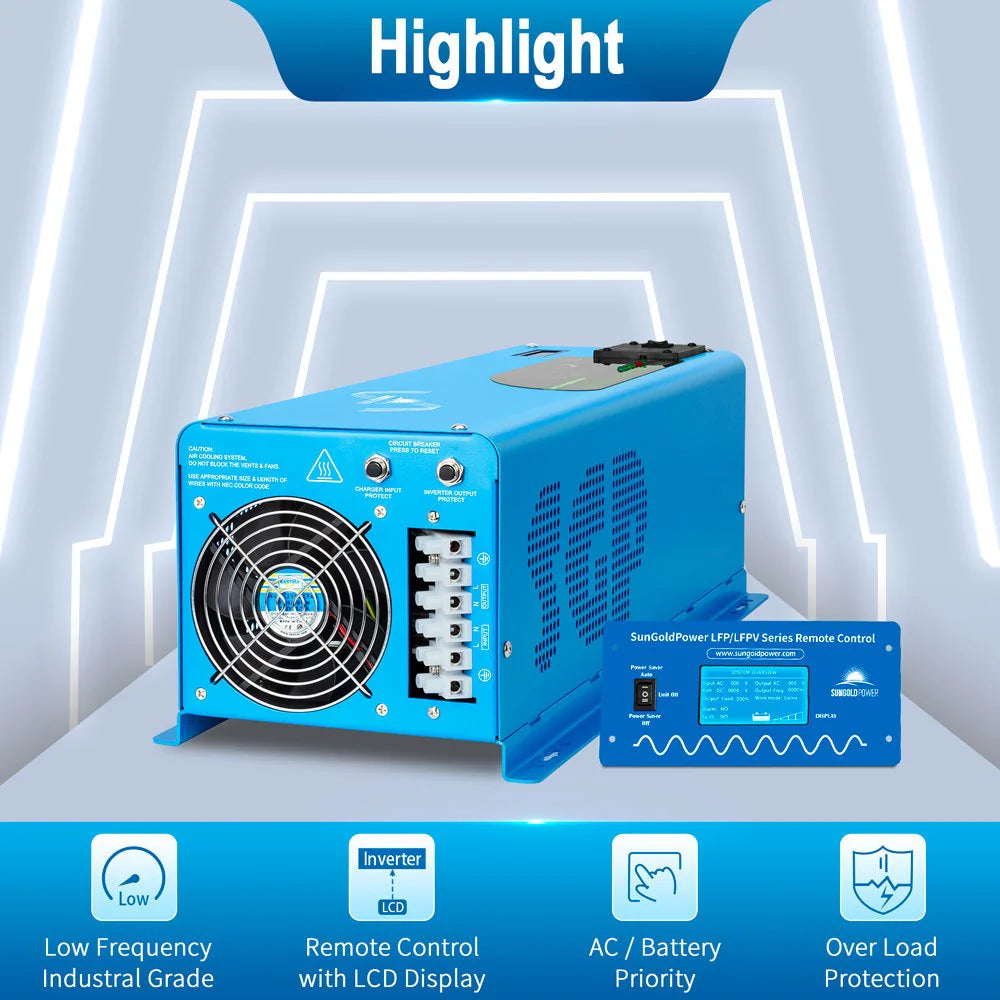

AC/Battery priority selector for flexible operation
- Auto generator start and stop feature
-
GFCI socket for added safety and convenience
-

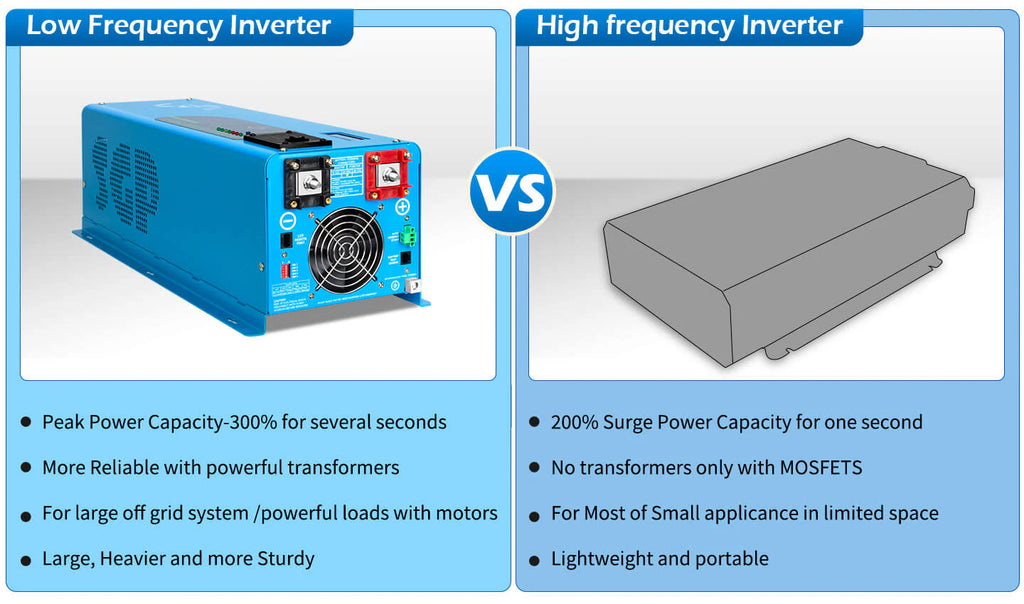

Low-frequency inverter that powers all types of appliances
-

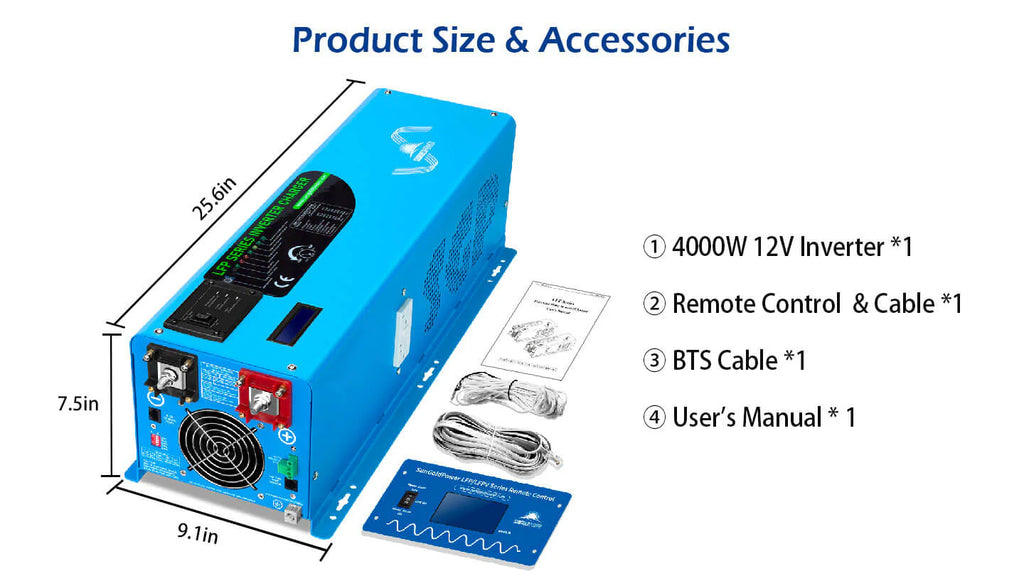

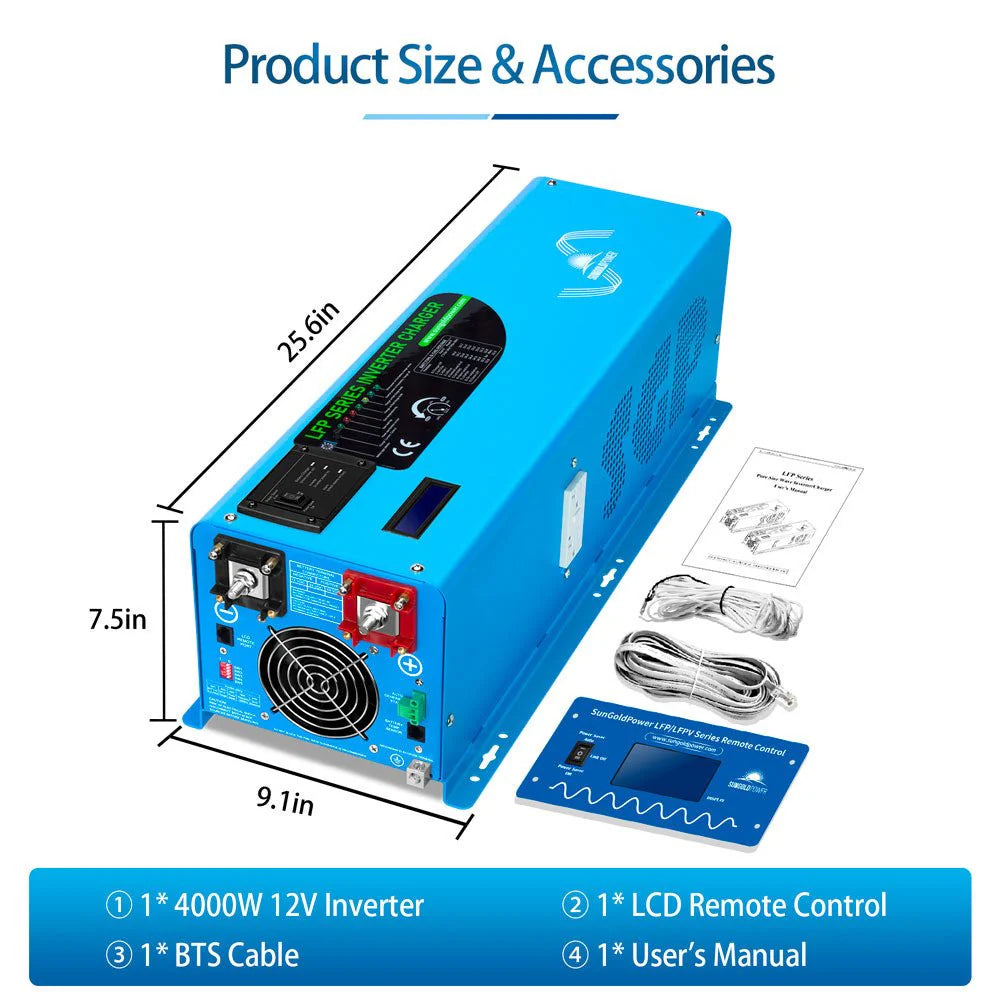

LCD display with remote control, including BTS cable
-
Low idle consumption for efficiency
-

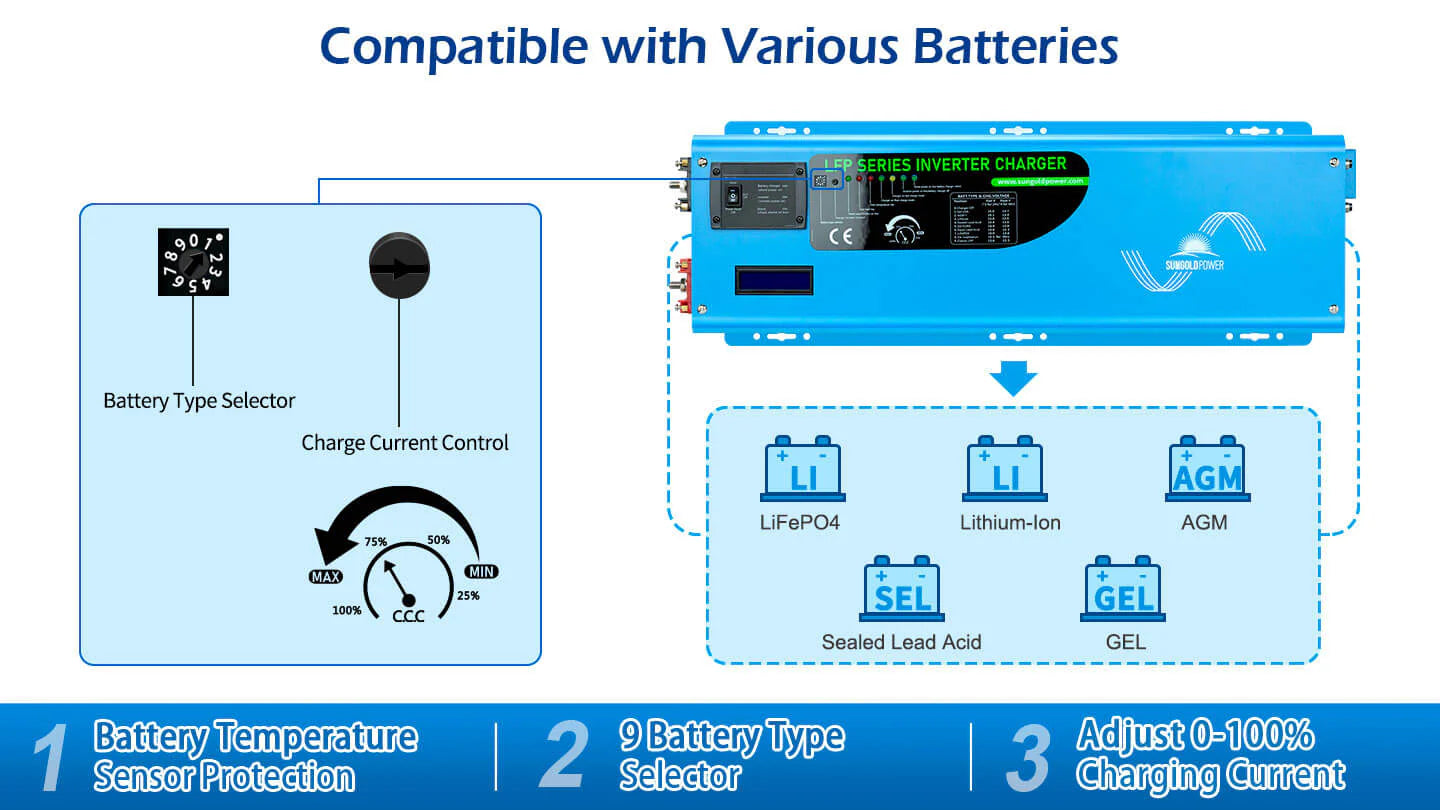

9 battery type settings for customized charging
-
Multi-stage, smart 120A charger (can be disabled)
- Fast 10ms transfer time
Inverter Output:
-
Continuous output power: 4000W
-
Surge rating: 12000W (20 seconds)
-
AC output: 120VAC
-
AC input: 120VAC
-
Output waveform: Pure sine wave (bypass mode)
-
Typical transfer time: 10ms (max)
-
Nominal efficiency: >88%
DC Input:
-
Nominal input voltage: 12V DC
-
Minimum start voltage: 10V DC
-
Low battery alarm: 10.5V-11V
-
Low battery trip: 10V-10.5V (adjustable via SW1)
-
High voltage alarm: 16V DC
-
Low battery restart voltage: 13V DC
-
Idle consumption: 45W
-
Power saver mode idle consumption: 18W
AC Charger:
-
Charger rate: 120A +/-5A
-
AC input range (grid or generator): 90V-135VAC / 100V-135VAC (selectable via SW2)
-
Overcharge protection shutdown: 15.7V
-
Selectable charging settings based on battery type
-
Adjustable charging current: 0%-100%
- 3-step intelligent battery charger
