SunGoldPower 8KW 48V Split Phase Solar Inverter (SPH8K48SP)

8KW Pure Sine Wave Solar Inverter

A powerful and efficient 8KW solar inverter designed to deliver clean and reliable AC power for a variety of applications. With built-in MPPT controllers, multiple operating modes, and smart energy management, this inverter ensures optimal performance and energy efficiency.

Key Features:

• All-in-One Unit:

  • 8KW Pure Sine Wave Output for stable and high-quality AC power.
  • Max 200A Battery Charging for fast and efficient energy storage.
  • 2 MPPT Solar Controllers for enhanced solar energy conversion.
  • Max Open Circuit Voltage: 500VDC for compatibility with high-voltage solar arrays.

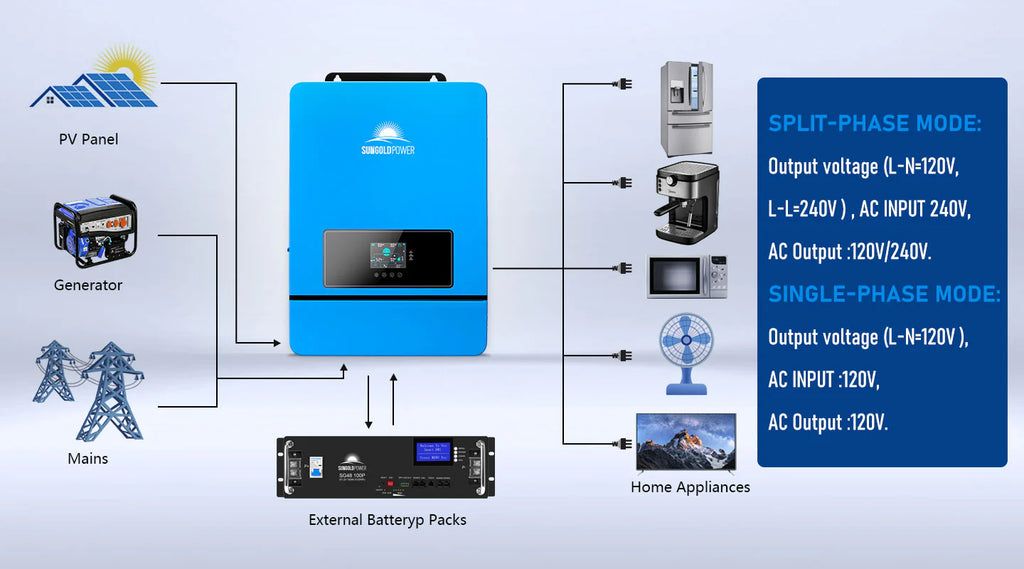

  • Output Options: Split Phase (120V/240V) or Single Phase (120V) for versatile energy setups.
  • Wi-Fi Module Included for real-time system monitoring and control via a mobile app.
  • UL1741 Listed by ETL for safety and compliance.

• Parallel Capability:

  • Supports up to 6 units in parallel, reaching a total power output of 48KW.
  • Flexible output configurations: 120V Single Phase, 120V/240V Split Phase, or 208V 3-Phase (for more than three units in parallel).

• Stable AC Output & Smart Protection:

  • Rated Output Power: 8,000W
  • Max Peak Power: 16,000W
  • Loaded Motor Capacity: 6HP
  • Comprehensive protection against PV input over-voltage/current, AC input over-voltage, battery over-voltage, and overload conditions to ensure safe and efficient operation.

• Flexible Charging & Output Modes:

  • Four Charging Modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging to fit various energy needs.
  • Four Output Modes: Utility Priority, Solar & Utility Hybrid, Solar Priority, and Inverter Priority for optimized energy management.

• Time-Slot Charging/Discharging Function:

  • Allows users to set charging and discharging periods based on local peak and valley tariffs, optimizing energy usage and reducing costs.

• Battery Compatibility:

  • Supports 48V AGM, Sealed, Gel, Flooded, and Lithium batteries.
  • User Mode allows customization for various battery types, including battery-free operation.
  • When lithium batteries are dormant, the inverter can reactivate them using mains power or solar energy.
  • Supports CAN, USB, and RS485 communication for advanced system integration.
